Open Round Rail 100

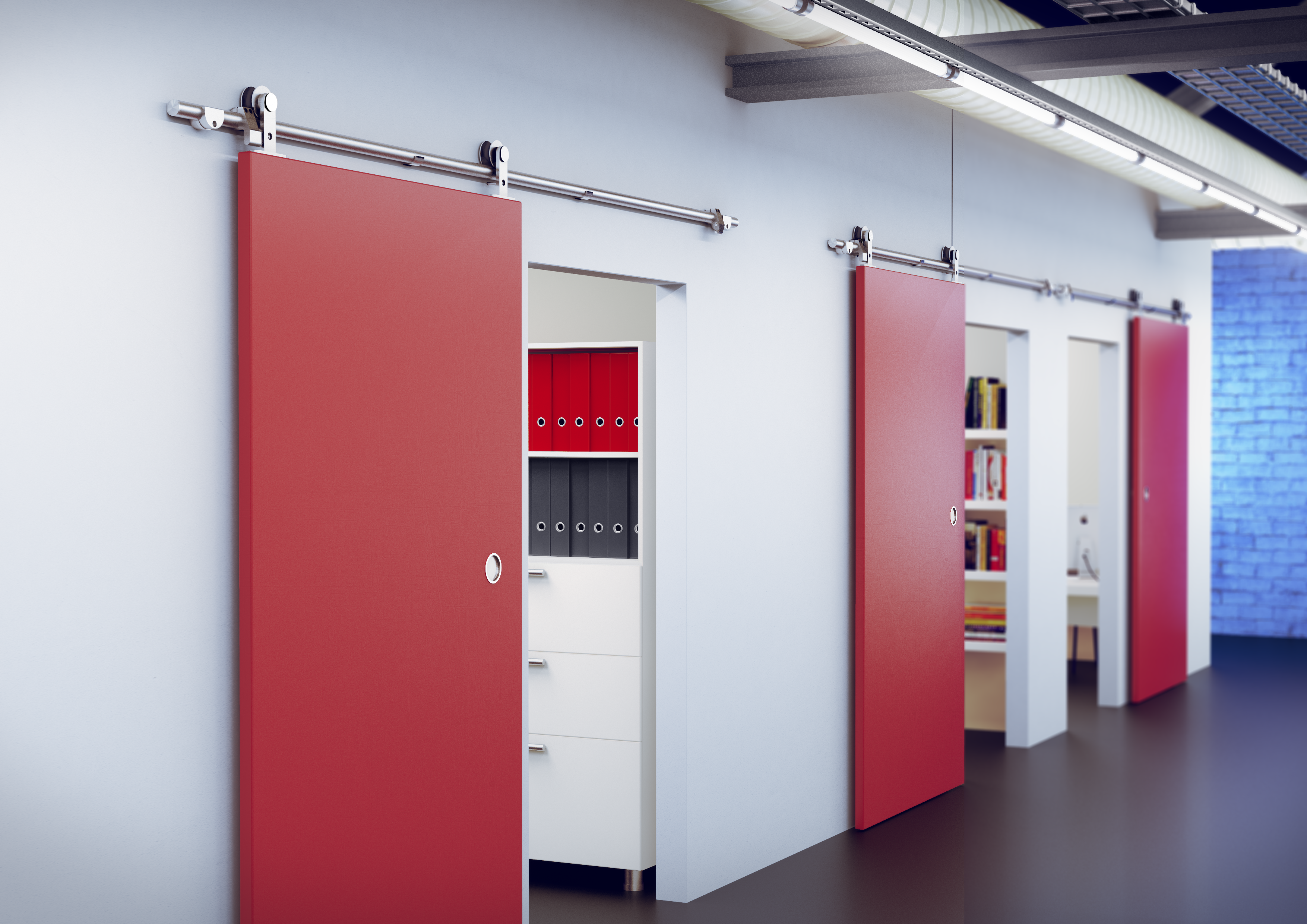

Sealed precision bearings and nylon inlaid tyre ensure Brio’s Open Round Rail Wood systems offer high performance and smooth operation every time.  The 304 stainless steel rollers and rail are available in brushed stainless or in our new PVD Black finish. Our new Soft Stop accessory provides an added level of quality while maintaining a heavy duty appearance on wooden panels up to 220lbs.  A multitude of guide options make Brio’s Open Round Rail Wood systems versatile for any situation.

Face Fix
Brio’s new Open Round Rail system offers face fix hangers for a contemporary aesthetic for any application with timber panels up to 1 9/16″ thick.

Top Fix
With easy installation and exposed rail design, Brio’s top fix hanger is an exciting solution for home or office applications with panels up to 1 3/4″ thick.



  • Option of face fix or top fix hangers
  • Choose from stain stainless or PVD black finish
  • Made from 304 stainless steel

  • Max Panel Weight: 220lbs (100kg)
  • Max Panel Width: 6ft 6in (2000mm)
  • Max Panel Height: 9ft 10in (3000mm)
  • Min Panel Thickness: 1 3/8″ (35mm)
  • Max Panel Thickness: 1 3/4″ (44mm)
